1959 Frigidaire Dryer Service Tech-Talk (continued)

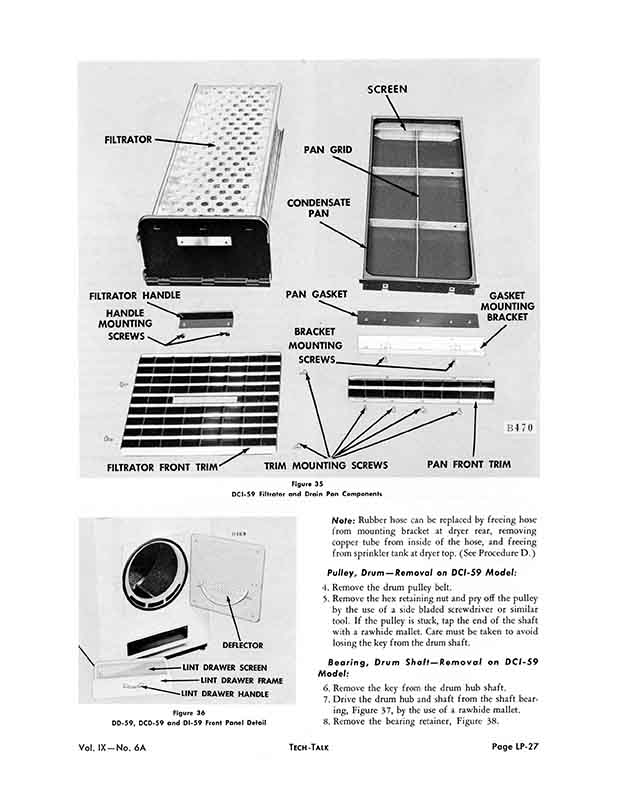

Page 27 of 32 First Page
< Back (Page 26)
> Next (Page 28)
...
Last (Page 32)
You are viewing a low-resolution preview. Available here is the high-res/32 page PDF version of this document ($2.64), most printers can output this nearly identically to the original document.
Automated Summary of Text on this Page:
SCREEN
FILTRATOR
PAN GRID
CONDENSATE
PAN
FILTRATOR FRONT TRIM'
TRIM MOUNTING SCREWS
PAN FRONT TRIM
FILTRATOR HANDLE
HANDLE MOUNTING SCREWS
GASKET
MOUNTING
BRACKET
PAN GASKET
Figure 35
DCI-59 Filtrator and Drain Pan Components
Note: Rubber hose can be replaced by freeing hose from mounting bracket at dryer rear, removing copper tube from inside of the hose, and freeing from sprinkler tank at dryer top. (See Procedure D.)
Pulley, Drum- Removal on DCI-59 Model:
4. Remove the drum pulley belt.
5. Remove the hex retaining nut and pry off the pulley by the use of a side bladed screwdriver or similar tool. If the pulley is stuck, tap the end of the shaft with a rawhide mallet. Care must be taken to avoid losing the key from the drum shaft.
Bearing, Drum Shaft-Removal on DCI-59 Model:
6. Remove the key from the drum hub shaft.
7. Drive the drum hub and shaft from the shaft bearing, Figure 37, by the use of a rawhide mallet.
DD-59, DCD-59 end DI-59 Front Panel Detail 8. Remove the bearing retainer, Figure 38.
B469
LINT DRAWER SCREEN
LINT DRAWER FRAME LINT DRAWER HANDLE
