1959 Frigidaire Dryer Service Tech-Talk (continued)

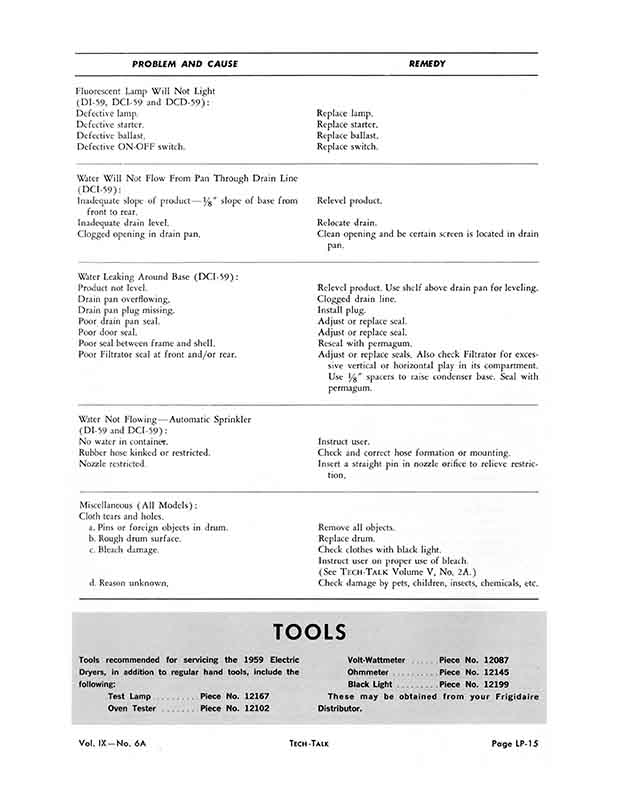

Page 15 of 32 First Page
< Back (Page 14)
> Next (Page 16)
...
Last (Page 32)
You are viewing a low-resolution preview. Available here is the high-res/32 page PDF version of this document ($2.64), most printers can output this nearly identically to the original document.
Automated Summary of Text on this Page:
PROBLEM AND CAUSE
REMEDY
Fluorescent Lamp Will Not Light (DI-59, DCI-59 and DCD-59) : Defective lamp.
Defective starter.
Defective ballast.
Defective ON-OFF switch.
Water Will Not Flow From Pan Through Drain Line (DCI-59):
Inadequate slope of product-l/g" slope of base from front to rear.
Inadequate drain level.
Clogged opening in drain pan.
Water Leaking Around Base (DCI-59): Product not level.
Drain pan overflowing.
Drain pan plug missing.
Poor drain pan seal.
Poor door seal.
Poor seal between frame and shell.
Poor Filtrator seal at front and/or rear.
Water Not Flowing-Automatic Sprinkler (DI-59 and DCI-59) :
No water in container.
Rubber hose kinked or restricted.
Nozzle restricted.
Miscellaneous (All Models):
Cloth tears and holes.
a. Pins or foreign objects in drum.
b. Rough drum surface.
c. Bleach damage.
d. Reason unknown.
Replace lamp. Replace starter. Replace ballast. Replace switch.
Relevel product.
Relocate drain.
Clean opening and be certain screen is located in drain pan.
Relevel product. Use shelf above drain pan for leveling. Clogged drain line.
Install plug.
Adjust or replace seal.
Adjust or replace seal.
Reseal with permagum.
Adjust or replace seals. Also check Filtrator for excessive vertical or horizontal play in its compartment. Use y8" spacers to raise condenser base. Seal with permagum.
Instruct user.
Check and correct hose formation or mounting.
Insert a straight pin in nozzle orifice to relieve restriction.
Remove all objects.
Replace drum.
Check clothes with black light.
Instruct user on proper use of bleach.
(See Volume V, No. 2A.)
Check damage by pets, children, insects, chemicals, etc.
TOOLS
Tools recommended for servicing the 1959 Electric Volt-Wattmeter .......Piece No. 12087
Dryers, in addition to regular hand tools, include the Ohmmeter..............Piece No. 12145
following: Black Light...........Piece No. 12199
Test Lamp .............Piece No. 12167 These may be obtained from your Frigidaire
Oven Tester ...........Piece No. 12102 Distributor.
