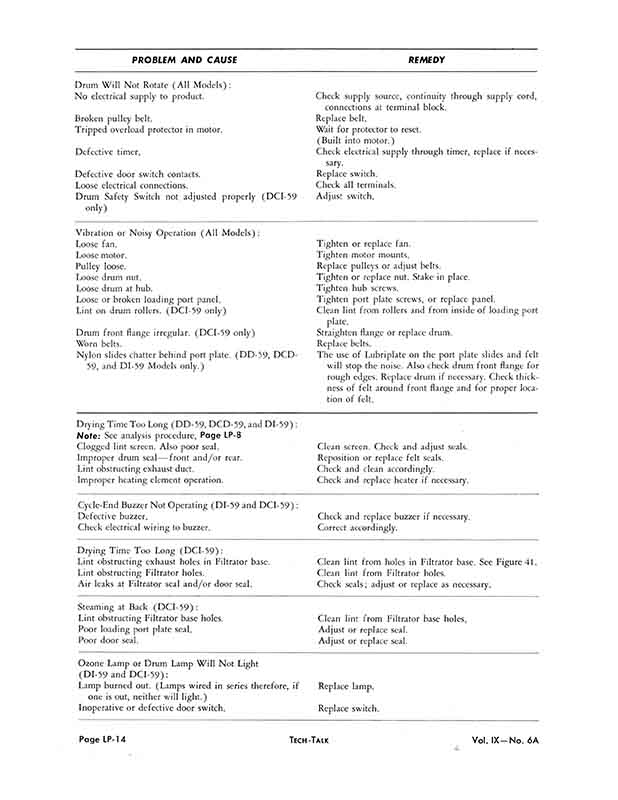

1959 Frigidaire Dryer Service Tech-Talk (continued)
Page 14 of 32 First Page
< Back (Page 13)
> Next (Page 15)
...
Last (Page 32)
You are viewing a low-resolution preview. Available here is the high-res/32 page PDF version of this document ($2.64), most printers can output this nearly identically to the original document.
Automated Summary of Text on this Page:
PROBLEM AND CAUSE
REMEDY
Drum Will Not Rotate (All Models) :
No electrical supply to product.
Broken pulley belt.
Tripped overload protector in motor.
Defective timer.
Defective door switch contacts.
Loose electrical connections.
Drum Safety Switch not adjusted properly (DCI-59 only)
Vibration or Noisy Operation (All Models) :
Loose fan.
Loose motor.
Pulley loose.
Loose drum nut.
Loose drum at hub.
Loose or broken loading port panel.
Lint on drum rollers. (DCI-59 only)
Drum front flange irregular. (DCI-59 only)
Worn belts.
Nylon slides chatter behind port plate. (DD-59, DCD-59, and DI-59 Models only.)
Drying Time Too Long ( DD-59, DCD-59, and DI-59) : Note: See analysis procedure, Page LP-8 Clogged lint screen. Also poor seal.
Improper drum seal-front and/or rear.
Lint obstructing exhaust duct.
Improper heating element operation.
Cycle-End Buzzer Not Operating (DI-59 and DCI-59) : Defective buzzer.
Check electrical wiring to buzzer.
Drying Time Too Long (DCI-59):
Lint obstructing exhaust holes in Filtrator base. Lint obstructing Filtrator holes.
Air leaks at Filtrator seal and/or door seal.
Steaming at Back (DCI-59) :
Lint obstructing Filtrator base holes. Poor loading port plate seal.
Poor door seal.
Ozone Lamp or Drum Lamp Will Not Light (DI-59 and DCI-59):
Lamp burned out. (Lamps wired in series therefore, if one is out, neither will light.)
Inoperative or defective door switch.
Check supply source, continuity through supply cord, connections at terminal block.
Replace belt.
Wait for protector to reset.
(Built into motor.)
Check electrical supply through timer, replace if necessary.
Replace switch.
Check all terminals.
Adjust switch.
Tighten or replace fan.
Tighten motor mounts.
Replace pulleys or adjust belts.
Tighten or replace nut. Stake in place.
Tighten hub screws.
Tighten port plate screws, or replace panel.
Clean lint from rollers and from inside of loading port plate.
Straighten flange or replace drum.
Replace belts.
The use of Lubriplate on the port plate slides and felt will stop the noise. Also check drum front flange for rough edges. Replace drum if necessary. Check thickness of felt around front flange and for proper location of felt.
Clean screen. Check and adjust seals. Reposition or replace felt seals.
Check and clean accordingly.
Check and replace heater if necessary.
Check and replace buzzer if necessary. Correct accordingly.
Clean lint from holes in Filtrator base. See Figure 41. Clean lint from Filtrator holes.
Check seals; adjust or replace as necessary.
Clean lint from Filtrator base holes. Adjust or replace seal.
Adjust or replace seal.
Replace lamp. Replace switch.
